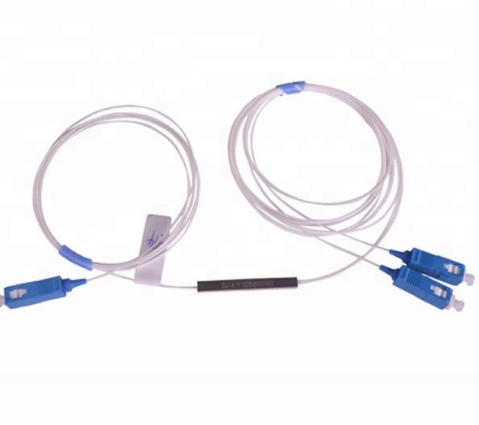

FTTH SC APC Connector 1x2 1x8 Fiber Optic PLC Splitter

  • 1
  • 2

Brand Name : Jiqian

Model Number : 1x2 1x8 Mini PLC Optical Fiber Splitter 2 Way

Certification : ISO9001 ROHS CE-EMC FCC SDOC

Place of Origin : China

MOQ : 1 piece

Payment Terms : L/C, T/T, Western Union,Alipay

Supply Ability : 2000 pieces per month

Delivery Time : 3-5 days,it depends on order quantity

Packaging Details : Inside plastic case,outside with cartion

Polishing : PC/UPC/APC

Channel No : 1*2 1*4 1X8 1X16 1X32

Application : FTTH FTTB FTTX Network

Type : PLC Splitter

Operation wavelength : 1260~1650nm

Contact Now

High quality SC APC connector 1x2 1x8 mini PLC optical fiber splitter 2 way PLC
FTTH SC APC Connector 1x2 1x8 Fiber Optic PLC Splitter

Key Features:

1. Low Insertion loss

2.Low PDL

3. High Return Loss

4. Uniform Power Splitting

5. Compact Design

6. Wide Operating Wavelength

7. Wide Operating Temperature

8.Excellent Environmental & Mechanical Stability

9. Qualified Under Telcordia GR-1221 and GR-1209

Type & Parameter
Parameter
Unit
Specification
Operation Wavelength
nm
1260~1650
Channel Number
1✖2
1✖4
1✖8
1✖16
1✖32
1✖64
Insertion Loss(Max.)
dB
4.2
7.3
10.5
13.5
17.2
21.5
Uniformity(Max.)
dB
0.5
0.8
1
1.4
1.6
2
Polarization Dependent Loss
dB
0.2
0.3
0.3
0.3
0.3
0.5
Return Loss
dB
≥50
Directivity
dB
≥50
